How does UTP CAT6 Cable solve the problems of electromagnetic interference (EMI) and radio frequency interference (RFI)?

Unshielded Twisted Pair (UTP) CAT6 cable is designed to mitigate and reduce the problems of electromagnetic interference (EMI) and radio frequency interference (RFI) through several key features and design characteristics:

Twisted Pair Configuration: UTP CAT6 cables consist of pairs of insulated copper wires twisted together. This twisting helps to cancel out EMI and RFI because the electromagnetic fields induced by the current flow in one wire are canceled out by the opposing fields induced in the adjacent wire. This balanced configuration reduces the impact of external interference.

Twist Rate and Tighter Twisting: CAT6 cables have a higher twist rate (more twists per inch) compared to older cable categories like CAT5e or CAT5. The tighter twisting enhances their resistance to interference by reducing crosstalk and improving overall signal quality.

Enhanced Insulation and Separation: CAT6 cables often feature improved insulation materials and better separation between the twisted pairs. This reduces the potential for interference between pairs within the same cable.

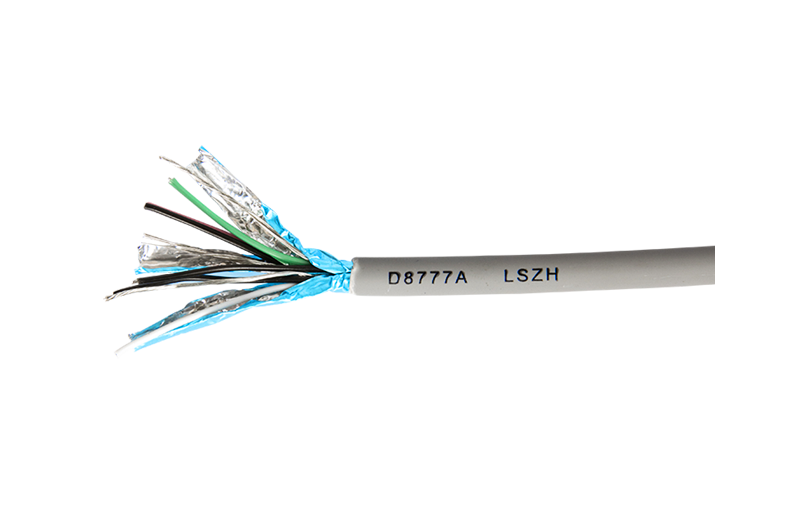

Pair Shielding (Optional): While standard UTP CAT6 cables do not have shielding, there are variants known as Shielded Twisted Pair (STP) or FTP (Foil Twisted Pair) CAT6 cables that include additional shielding to provide extra protection against EMI and RFI. The shielding can be a foil or braided layer around the twisted pairs, which helps to block external interference.

Quality Control and Compliance: UTP CAT6 cables are manufactured to meet specific industry standards and undergo testing to ensure they meet performance criteria. These standards include requirements related to EMI and RFI resistance. When properly manufactured and installed, CAT6 cables can meet or exceed these standards, providing reliable performance in noisy environments.

Proper Grounding: To further reduce the impact of EMI and RFI, it's important to ensure that the network equipment and cable shields (if present) are properly grounded. Proper grounding helps dissipate interference and protect network signals.

Cable Routing and Separation: When installing CAT6 cables, it's important to keep them separate from power cables, fluorescent lighting, and other potential sources of EMI and RFI. Careful cable routing can minimize the risk of interference.
